DeepLabV3

Weights: the pretrained weights for the DeepLabV3 model are hosted on the kerasformers deeplabv3 release tag, and download automatically the first time you call from_weights(...).

DeepLabV3 does semantic segmentation: every pixel gets a class, with no notion of separate object instances. Two dogs side by side are one dog region, not two.

Its contribution is atrous (dilated) convolution. A plain classification backbone downsamples aggressively, which is fine for a single label but destroys the spatial detail segmentation needs. Dilated convolutions widen the receptive field without downsampling further, and the Atrous Spatial Pyramid Pooling head samples several dilation rates in parallel so one layer sees objects at multiple scales at once.

Paper: Rethinking Atrous Convolution for Semantic Image Segmentation

API

DeepLabV3SemanticSegment

DeepLabV3SemanticSegment(backbone_variant="ResNet50", num_classes=21,
                         image_size=520, input_tensor=None,
                         name="DeepLabV3SemanticSegment")

The segmentation model: dilated ResNet backbone plus the ASPP head. This is the class for semantic segmentation.

Parameters

• backbone_variant (str, optional, defaults to "ResNet50"): CNN backbone, "ResNet50" or "ResNet101".
• num_classes (int, optional, defaults to 21): Pascal VOC's 20 classes plus background.
• image_size (int, optional, defaults to 520): input resolution the model is built for.
• input_tensor (dict, optional): pre-existing input tensors to build on.
• name (str, optional, defaults to "DeepLabV3SemanticSegment"): model name.

Call model(pixel_values, training=False). Returns a tensor of shape (B, H, W, num_classes): per-pixel class logits at the input resolution.

DeepLabV3Model

DeepLabV3Model(backbone_variant="ResNet50", image_size=520,
               input_tensor=None, name="DeepLabV3Model")

The dilated backbone without the segmentation head, for features to attach your own head to.

Preprocessing

DeepLabV3ImageProcessor

DeepLabV3ImageProcessor(size=None, resample="bilinear", do_rescale=True,
                        rescale_factor=1/255, do_normalize=True,
                        image_mean=None, image_std=None, return_tensor=True,
                        data_format=None)

Resizes to a fixed square, rescales to [0, 1], and normalizes with ImageNet statistics.

Parameters

• size (dict, optional, defaults to {"height": 520, "width": 520}): target size.
• resample (str, optional, defaults to "bilinear"): resize interpolation.
• do_rescale (bool, optional, defaults to True): scale pixels to [0, 1].
• do_normalize (bool, optional, defaults to True): apply ImageNet normalization.
• image_mean / image_std (tuple, optional): defaults to the ImageNet statistics.
• return_tensor (bool, optional, defaults to True): return backend tensors rather than numpy.
• data_format (str, optional): "channels_last" or "channels_first". Defaults to keras.config.image_data_format().

post_process_semantic_segmentation

processor.post_process_semantic_segmentation(outputs, target_size=None,
                                             label_names=None, data_format=None)

Takes the per-pixel argmax and resizes the label map to target_size.

Returns a dict:

• segmentation ((H, W) uint8): the class id per pixel.
• unique_classes: the ids actually present.
• class_names: their names, from Pascal VOC unless label_names is given.

Model Variants

Variant id	Backbone	Classes	Source
deeplabv3_resnet50_coco_voc	ResNet-50	21	torchvision
deeplabv3_resnet101_coco_voc	ResNet-101	21	torchvision

Both are trained on the COCO subset that covers the Pascal VOC label set, so the vocabulary is VOC's 20 classes plus background.

Basic Usage: Semantic Segmentation

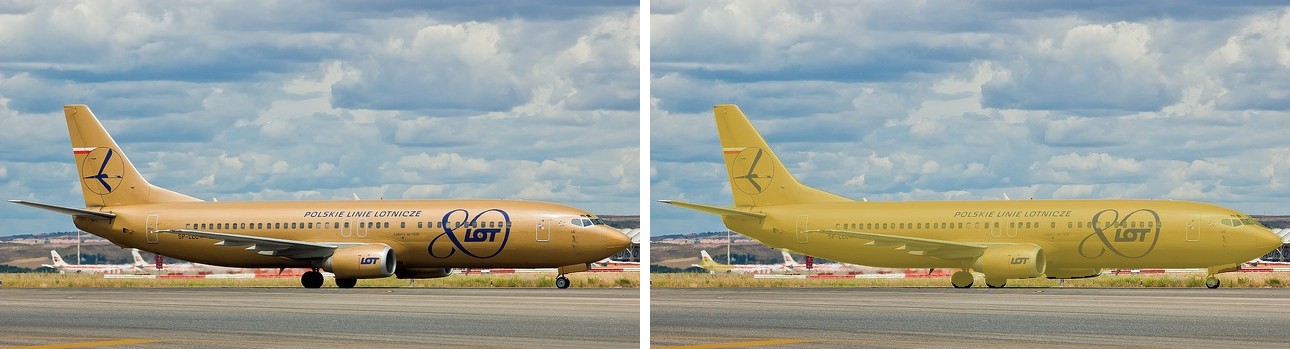

Each figure is the original image beside the predicted segmentation overlaid on it.

import keras
import numpy as np
from PIL import Image
from kerasformers.models.deeplabv3 import (
    DeepLabV3ImageProcessor, DeepLabV3SemanticSegment,
)

model = DeepLabV3SemanticSegment.from_weights("deeplabv3_resnet50_coco_voc")
processor = DeepLabV3ImageProcessor()

image = Image.open("assets/data/coco_airplane.jpg").convert("RGB")
output = model(processor(image)["pixel_values"], training=False)
# output: (1, 520, 520, 21)

result = processor.post_process_semantic_segmentation(
    output, target_size=(image.height, image.width)
)
seg = np.asarray(keras.ops.convert_to_numpy(result["segmentation"]))

for cid, name in zip(result["unique_classes"], result["class_names"]):
    print(f"{name:14s} {int((seg == int(cid)).sum())} px")

background     181677 px
aeroplane      41683 px

segmentation is a plain (H, W) label map, so counting pixels per class is just a comparison. There is no per-instance structure here: if two aeroplanes overlapped they would share one region.

Batch Processing Multiple Images

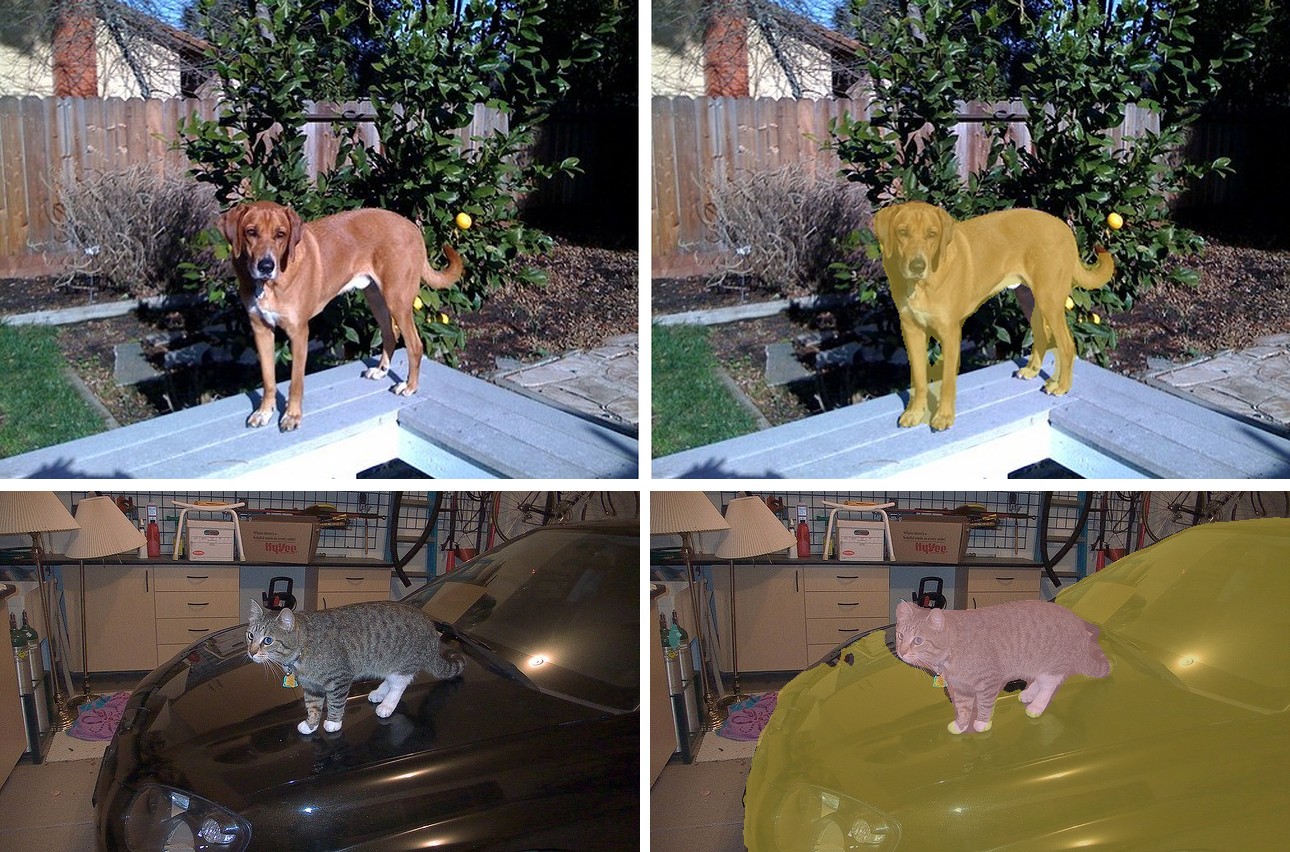

The processor accepts a list, and every image is resized to the same square, so stacking is always safe. Post-process one image at a time, since each has its own target size:

import keras
import numpy as np
from PIL import Image
from kerasformers.models.deeplabv3 import (
    DeepLabV3ImageProcessor, DeepLabV3SemanticSegment,
)

model = DeepLabV3SemanticSegment.from_weights("deeplabv3_resnet50_coco_voc")
processor = DeepLabV3ImageProcessor()

paths = ["assets/data/coco_dog_yard.jpg", "assets/data/coco_cat_car.jpg"]
images = [Image.open(p).convert("RGB") for p in paths]

outputs = model(processor(paths)["pixel_values"], training=False)   # (2, 520, 520, 21)

for path, image, logits in zip(paths, images, outputs):
    result = processor.post_process_semantic_segmentation(
        logits[None], target_size=(image.height, image.width)
    )
    seg = np.asarray(keras.ops.convert_to_numpy(result["segmentation"]))
    print(f"\n{path}")
    for cid, name in zip(result["unique_classes"], result["class_names"]):
        print(f"  {name:12s} {int((seg == int(cid)).sum())} px")

assets/data/coco_dog_yard.jpg
  background   170539 px
  dog          16961 px

assets/data/coco_cat_car.jpg
  car          120579 px
  background   92789 px
  cat          17453 px
  bottle       219 px

The stray 236-pixel bottle on the second image is a good illustration of what a semantic model gives you: no confidence score to threshold on, just a label per pixel. Filter by region area if small spurious regions matter.

Data Format

Both the model and the processor support channels_last and channels_first.

	How it picks the format
Processors	A data_format kwarg, per instance. None (the default) resolves to keras.config.image_data_format().
Models	Read keras.config.image_data_format() when they are constructed. There is no data_format argument.

import keras

keras.config.set_image_data_format("channels_first")

model = DeepLabV3SemanticSegment.from_weights("deeplabv3_resnet50_coco_voc")
processor = DeepLabV3ImageProcessor()

post_process_semantic_segmentation also takes data_format, since it has to know which axis holds the classes before taking the argmax. It always returns (H, W).

Custom Class Names

A model fine-tuned on your own dataset predicts your class indices, not VOC's:

result = processor.post_process_semantic_segmentation(
    output, target_size=(image.height, image.width),
    label_names=["background", "road", "building"],
)

Without it the post-processor falls back to the Pascal VOC names.

Loading Fine-tuned and Community Weights

The release variants come from torchvision rather than the Hub, so there is no hf: route for the official checkpoints. You can still construct the architecture and load your own weights:

from kerasformers.models.deeplabv3 import DeepLabV3SemanticSegment

# Architecture only, randomly initialized
model = DeepLabV3SemanticSegment.from_weights(
    "deeplabv3_resnet50_coco_voc", load_weights=False,
)

# Your own class count for fine-tuning
model = DeepLabV3SemanticSegment(backbone_variant="ResNet50", num_classes=3)

See also SegFormer for a transformer-based semantic segmenter, and MobileViT, which pairs this same DeepLabV3 head with a mobile backbone.
