LocateAnything¶

Weights: the pretrained weights for LocateAnything-3B are hosted on the kerasformers locate release tag, and download automatically the first time you call from_weights(...).

LocateAnything-3B is NVIDIA's visual-grounding VLM: a native-resolution MoonViT vision tower and a small connector feed a Qwen2.5-3B decoder, and the model answers in boxes and points rather than prose. One checkpoint covers a whole family of grounding tasks, chosen entirely by the instruction you give it: detection, multi-object referring, pointing, layout grounding, GUI/text grounding, and OCR.

Coordinates come out as quantized [0, 1000] tokens, not spelled-out digits, and the model uses Parallel Box Decoding (PBD) to emit a whole box in a couple of steps instead of one digit at a time. Divide a coordinate by 1000 and multiply by the image width or height to get pixels.

Model card: nvidia/LocateAnything-3B

API¶

Class	What it is
`LocateAnythingGenerate`	the full model with the tied LM head and `generate`. This is the one you want.
`LocateAnythingModel`	backbone only (no LM head).
`LocateAnythingVisionModel`	the MoonViT tower alone.
`LocateAnythingProcessor`	image + text to model inputs.
`LocateAnythingTokenizer`	Qwen2.5 BPE extended with the grounding tokens, plus `parse_*`.
`LocateAnythingImageProcessor`	the native-resolution MoonViT patch preprocessor.

from_weights("locateanything_3b") loads any of them. The 3B decoder is large; load it in bf16 (load_dtype="bfloat16") unless you have the memory for fp32.

Building an instruction¶

from kerasformers.models.locateanything import locate_prompt

locate_prompt("detection", "car")   # -> "Locate all the instances ...: car."

locate_prompt(task, text) returns the verbatim instruction string for each task. The tasks are detection, referring, phrase_grounding, pointing, layout, text_grounding, and ocr; text fills the category or phrase (a list is joined with the model's </c> separator) and is ignored by ocr.

Reading the answer¶

The tokenizer turns the generated ids into structured results:

parse_boxes(ids) -> [[x1, y1, x2, y2], ...] in [0, 1000]. Use for detection.
parse_points(ids) -> [[x, y], ...] in [0, 1000]. Use for pointing.
parse_grounding(ids) -> [{"label": str | None, "box"/"point": [...]}, ...], pairing each <ref> label with the box or point that follows. Use for referring, layout, text grounding, and OCR.

Shared Setup¶

Every task below reuses one loaded model, processor, and a tiny helper that scales a [0, 1000] box to pixels for drawing:

import os
os.environ["KERAS_BACKEND"] = "torch"   # or "jax" / "tensorflow"

import keras
import numpy as np
from PIL import Image, ImageDraw
from kerasformers.models.locateanything import (
    LocateAnythingGenerate, LocateAnythingProcessor, locate_prompt,
)

model = LocateAnythingGenerate.from_weights("locateanything_3b", load_dtype="bfloat16")
processor = LocateAnythingProcessor.from_weights("locateanything_3b")

def run(task, image, text="", **gen):
    prompt = locate_prompt(task, text)
    inputs = processor(conversation=[{
        "role": "user",
        "content": [{"type": "image", "image": image}, {"type": "text", "text": prompt}],
    }])
    out = model.generate(**inputs, max_new_tokens=192,
                         tokenizer=processor.tokenizer, **gen)
    return np.asarray(keras.ops.convert_to_numpy(out))[0].tolist()   # generated ids

def to_px(box, w, h):
    return [box[0] / 1000 * w, box[1] / 1000 * h, box[2] / 1000 * w, box[3] / 1000 * h]

Detection¶

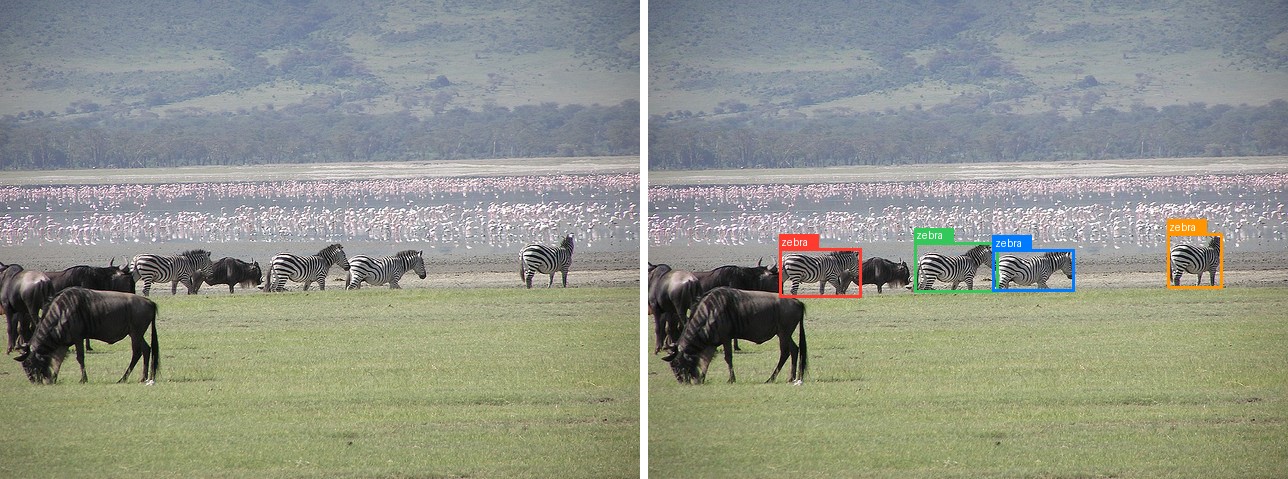

LocateAnything detecting every zebra in a herd on the savanna

Give a category and get every instance of it. The answer is a flat list of boxes, so read it with parse_boxes.

image = Image.open("assets/data/coco_herd_field.jpg").convert("RGB")
ids = run("detection", image, "zebra")

boxes = processor.tokenizer.parse_boxes(ids)
print(len(boxes), boxes[0])

4 [205, 519, 333, 621]

Four zebras, each box in the [0, 1000] grid, and the wildebeest in the same frame are left out. Pass a list of categories to detect several at once, locate_prompt("detection", ["zebra", "wildebeest"]).

Multi-Object Referring¶

LocateAnything referring: the seven children wearing caps in a group photo, each boxed

Referring returns every instance that matches a phrase, each paired with its label, so read it with parse_grounding. The phrase can describe the instances rather than name a category, which is what separates it from plain detection.

image = Image.open("assets/data/coco_children_pool.jpg").convert("RGB")
ids = run("referring", image, "a child wearing a cap")

for r in processor.tokenizer.parse_grounding(ids):
    print(r["label"], r["box"])

a child wearing a cap [31, 388, 173, 827]
a child wearing a cap [184, 315, 309, 792]
a child wearing a cap [325, 362, 481, 871]
a child wearing a cap [512, 319, 650, 979]
a child wearing a cap [619, 331, 723, 1000]
a child wearing a cap [645, 440, 819, 1000]
a child wearing a cap [788, 398, 1000, 1000]

Seven of the children come back and the bare-headed ones are skipped, out of a group of more than a dozen. Use phrase_grounding instead when you want a single best instance rather than all of them.

Pointing¶

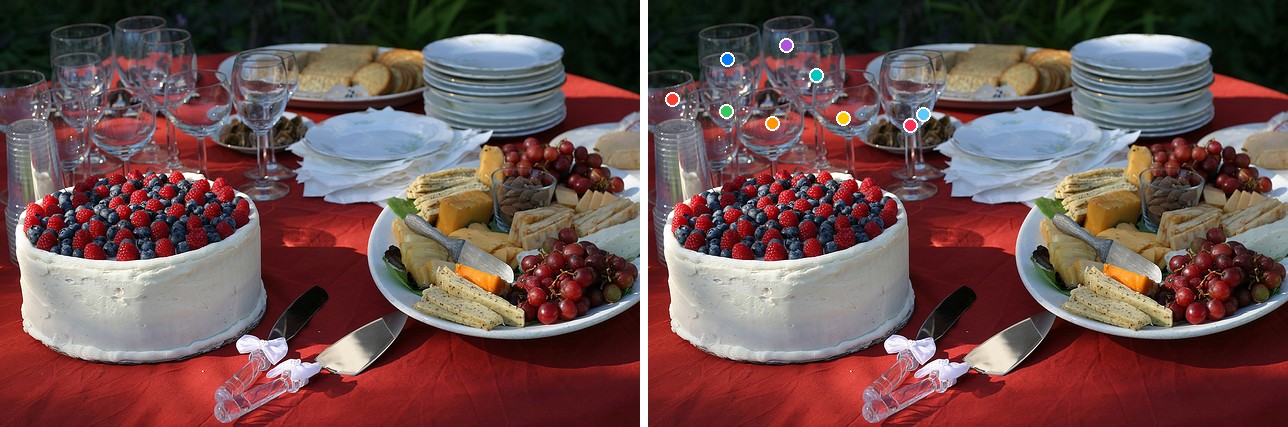

LocateAnything pointing at each wine glass on a laid table

Pointing returns coordinates instead of boxes, a <box> carrying two numbers rather than four, so read it with parse_points.

image = Image.open("assets/data/coco_buffet.jpg").convert("RGB")
ids = run("pointing", image, "a wine glass")

points = processor.tokenizer.parse_points(ids)
print(len(points), points[0])

9 [38, 234]

Nine glasses, one point each, in the [0, 1000] grid, picked out of a crowded table without touching the cake, plates, or platter. Pointing scales to counts that would be tedious to box: "a strawberry on the cake" on the same image returns 47 points.

Layout Grounding¶

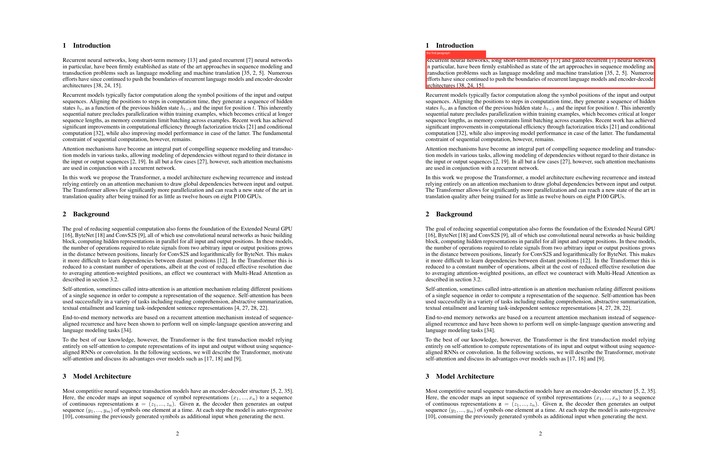

LocateAnything locating the first paragraph on the second page of Attention Is All You Need

Layout grounding locates the single region that matches a description, which is what you use to pick a block out of a document page, a caption, a paragraph, a section. Here it finds the first paragraph on the second page of Attention Is All You Need.

image = Image.open("assets/data/attention_paper_p2.jpg").convert("RGB")
ids = run("layout", image, "the first paragraph")

print(processor.tokenizer.parse_grounding(ids))

[{'label': 'the first paragraph', 'box': [176, 126, 823, 193]}]

Name a section instead, "the Background section", and it returns the tight box around that heading ([176, 460, 309, 474]) rather than the whole block.

GUI / Text Grounding¶

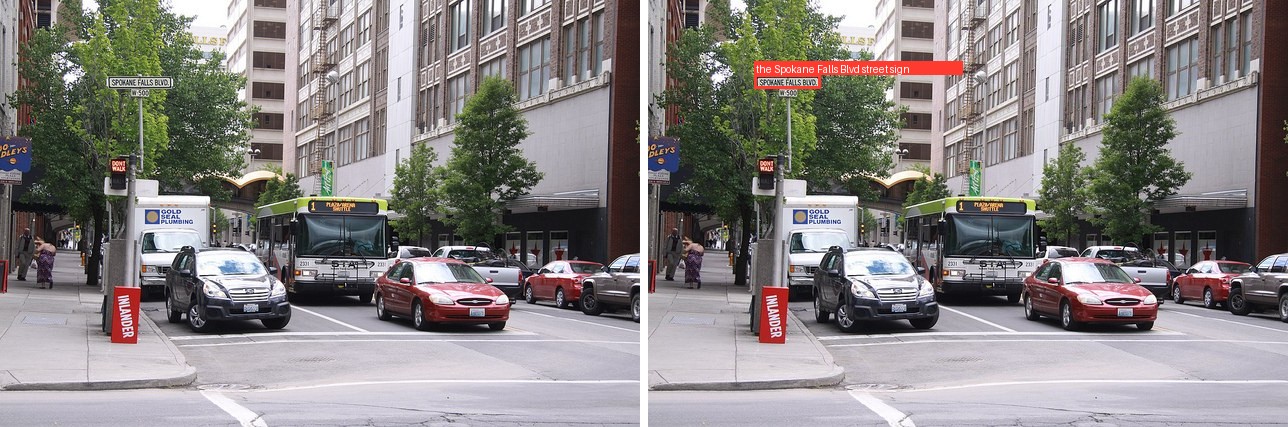

LocateAnything grounding the Spokane Falls Blvd street sign on a city street

text_grounding locates a named piece of text or a named UI element, which is how GUI grounding ("select the crop tool") works: point the same call at a screenshot and name the control.

image = Image.open("assets/data/coco_city_bus.jpg").convert("RGB")
ids = run("text_grounding", image, "the Spokane Falls Blvd street sign")

print(processor.tokenizer.parse_grounding(ids))

[{'label': 'the Spokane Falls Blvd street sign.', 'box': [166, 175, 270, 208]}]

It picks the one named sign out of a street full of text. Asking for "the DON'T WALK sign" instead returns [167, 364, 200, 406], the signal head below it.

OCR¶

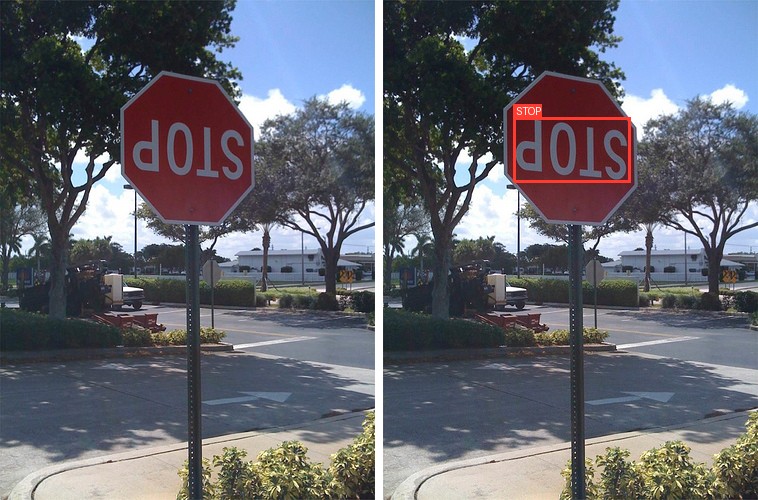

LocateAnything reading the text on an upside-down stop sign

OCR detects every piece of text and returns each string with its box. The prompt takes no argument.

image = Image.open("assets/data/coco_stop_sign.jpg").convert("RGB")
ids = run("ocr", image)

for r in processor.tokenizer.parse_grounding(ids):
    print(repr(r["label"]), r["box"])

'STOP' [348, 235, 660, 364]

The sign is mounted upside down and the model still reads it, returning the one text region in the frame with its box. On a scene with more signage it returns one entry per piece of text the same way.

Drawing the Results¶

The figures above overlay the parsed boxes and points on the original. The box variant:

def draw(image, results):
    out = image.convert("RGB").copy()
    d, (w, h) = ImageDraw.Draw(out), out.size
    for r in results:
        if "point" in r:
            x, y = r["point"][0] / 1000 * w, r["point"][1] / 1000 * h
            d.ellipse([x - 6, y - 6, x + 6, y + 6], fill=(255, 59, 48))
        else:
            d.rectangle(to_px(r["box"], w, h), outline=(255, 59, 48), width=3)
            if r.get("label"):
                d.text((r["box"][0] / 1000 * w, r["box"][1] / 1000 * h - 12), r["label"])
    return out

draw(image, processor.tokenizer.parse_grounding(ids)).save("assets/locate_result.jpg")

Decoding Modes¶

LocateAnything emits coordinates as quantized [0, 1000] tokens and can decode a box in parallel (PBD) instead of one token at a time. generate exposes three modes through generation_mode:

Mode	What it does
`"hybrid"` (default)	multi-token box prediction with an autoregressive fallback; the fastest that stays faithful.
`"fast"`	multi-token prediction only. Fewest steps, occasionally coarser.
`"slow"`	pure autoregressive. The reference behaviour, one token per step.

The run helper from the shared setup forwards any extra keyword to generate:

image = Image.open("assets/data/coco_herd_field.jpg").convert("RGB")
ids = run("detection", image, "zebra", generation_mode="fast")
boxes = processor.tokenizer.parse_boxes(ids)   # parse exactly as before

The vision tower runs once and is cached across the decoding steps, so the per-box cost is dominated by the decoder, which is what the parallel modes cut. The modes trade steps for fidelity, so keep the default hybrid unless you have measured that fast is good enough for your inputs.

Several Images¶

Because MoonViT keeps every image at its native resolution, the cleanest way to process several images is to loop, one grounding call each, which also lets each image carry a different task:

jobs = [
    ("detection", "coco_herd_field.jpg", "zebra"),
    ("pointing", "coco_buffet.jpg", "a wine glass"),
]
for task, name, text in jobs:
    ids = run(task, Image.open(f"assets/data/{name}").convert("RGB"), text)
    print(name, processor.tokenizer.parse_grounding(ids))

coco_herd_field.jpg [{'label': 'zebra', 'box': [205, 519, 333, 621]}, ...]
coco_buffet.jpg [{'label': 'a wine glass', 'point': [38, 234]}, ...]

LocateAnything is a grounding specialist, not a chat model. Its decoder is trained to emit boxes and points, and free-form questions come back garbled. Keep the prompts to the grounding tasks above; for general vision-language chat use a model built for it, such as Qwen3-VL.

Lower Memory¶

The 3B decoder loads in bf16 or weight-only quantized. See quantization.md:

model = LocateAnythingGenerate.from_weights(
    "locateanything_3b", quantization="int8", low_memory=True, load_dtype="bfloat16"
)

Data Format¶

Coordinates are always returned in the [0, 1000] grid, independent of keras.config.image_data_format(). The MoonViT tower keeps each image at its native resolution (up to in_token_limit patches), so images of different sizes batch without padding to a common shape.

See also kimi_k25.md, which shares the MoonViT vision tower.
